Key FeaturesTechnical SpecificationsDownload
- 1 Channel
- 5 VDC
- 10 KA

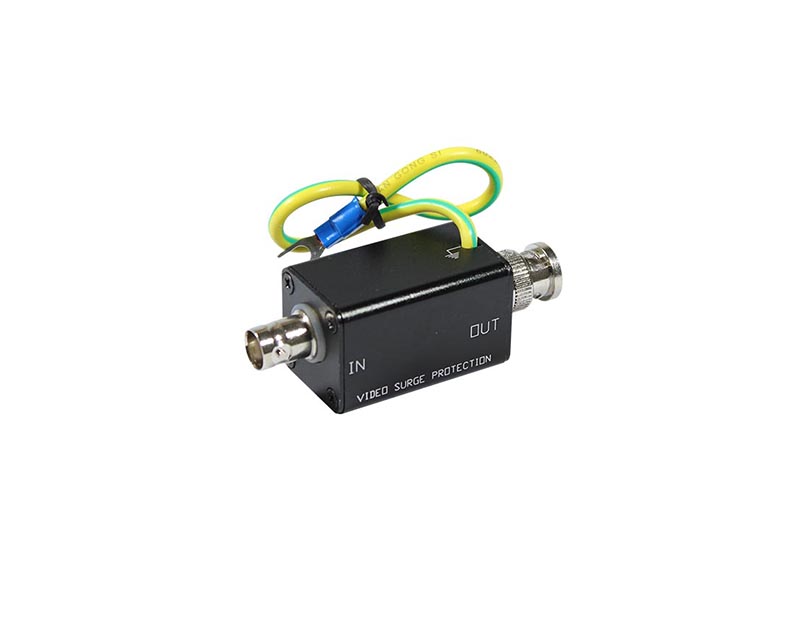

| FUNCTION | Video signal surge protection |
| RESPONSE TIME | <1ns |
| NORMAL DISCHARGE CURRENT | 5KA |
| MAXIMUM DISCHARGE CURRENT | 10KA |
| RATED LOAD VOLTAGE | 5V |
| LIMITED VOLTAGE DC | 20V |
| INSERTION LOSS ( db ) | < 0.2dB |
| MAX TRANSMISSION RATE | 10 Mbps |
| CONNECTOR | BNC |
| WEIGHT | 60g |
