- Simplex/Duplex Operation
- Live Display
- 100 FPS Recording@CIF
- 4 IN / 2 Relay Alarm
- 4 IN/ 1 OUT Audio
- 1-VGA, 1-CBVS Output
- 1 SATA Output, SD Card
- Built-In GPS
- Anti Vibration
PLAYBACK
| VIDEO IN | 4 Channels |
| VIDEO OUT | 1 CVBS |
| AUDIO IN | 4 mic-in |
| AUDIO OUT | 1 Line-out |
| DEVICE | |
| SENSOR IN | 2 TTL |
| ALARM OUT | 2 Relay |
| GPS | Built-in GPS [External Active Antenna Port] |
| DISPLAY | |
| SPEED | NTSC: 120 PAL: 100fps |
| RESOLUTION | Selectable: 800 x 600, 1024 x 768, 1280 x 720, 1360 x 768, 1440 x 900, 1680 x 1050 |
| SPLIT SCREEN | 1, 4, PIP, Digital Zoom |
| RECORDING | |
| MODE | Time Lapse, Event, Time & Event |
| SPEED / RESOLUTION | NTSC: 120fps @ CIF PAL: 100fps @ CIF NTSC: 60fps @ Half D1 PAL: 50fps @ Half D1 NTSC: 30fps @ D1 PAL: 25fps @ D1 |
| NETWORK | |
| NETWORK INTERFACE | Ethernet [10/100 Base] |
| PROTOCOL | TCP/IP, HTTP, DHCP |
| APPLICATION | Live, Playback, Setup, Notification [Call back, E-mail] |
| REMOTE VIEWING | Internet Explorer 7 or higher, Remote Client Software, CMS or iPhone |
| STORAGE | 1 ea SATA HDD 2.5” (Max 1TB), SD Card |
| BACKUP | External ODD, HDD, USB Memory |
| CONTROL | USB Mouse, IR Remote Controller, Joystick Controller |
| POWER CONSUMPTION | DC12V ~36V, 64W |
| OPERATING TEMPERATURE | -20°C ~ 50°C [build-in heating system] |
| DIMENSION | 218mm × 255mm × 56mm (w x h x d) |
| WEIGHT | 1.33Kg |

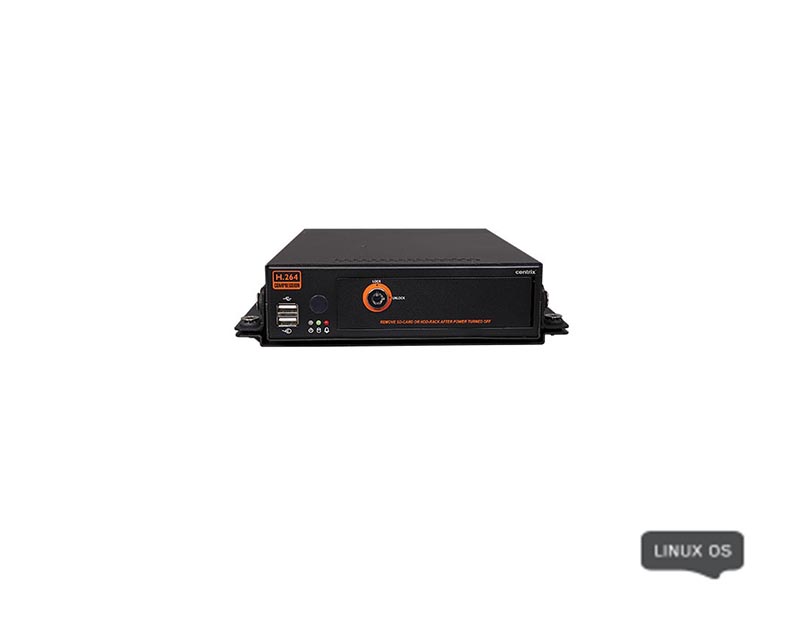

| MRV04 4 Channels Mobile DVR
|
MRV08 8Channels Mobile DVR
|
